70-D3B-2_G | BUTT SEAM SEWING MACHINE
MERROW 72-D3B-2_G SPECIFICATIONS
OPERATING SPEED |
2250 RPM |
STITCH WIDTH |
16MM (5/8") |
STITCH RANGE |
152.4 SPMM (6 SPI) |
STANDARD NEEDLE |
MERROW 8SDT |
MERROW NEEDLE RANGE |
MERROW 3SDT-8SDT |
FEDERAL STITCH TYPE |
503 |
STITCHES PER MM |
101MM - 305MM (4-12 SPI) |
NUMBER OF THREADS |
ONE THREAD |
"
Recommended Accessories
Details

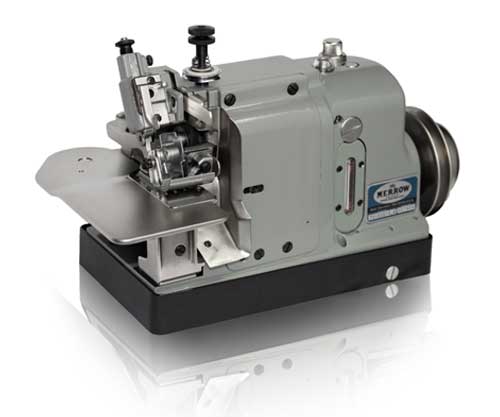

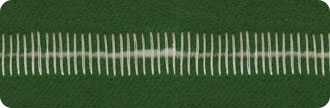

The Merrow 70-D3B-2_G industrial sewing machine produces a single-thread butted Gap seam, specifically designed for the end-end seaming of woven and non-woven material. The machine sews a 5/8” stitch with a physical gap (approximately 1/32”-1/16” wide) between the ends of joined fabric. This stitch is effective for applications that require drainage or seam detection between pieces of fabric. The 70-D3B-2_G can also be used in the processing of thick fabric, where it allows a seam to lay flat under the tension of processing.
Other Butt Seaming Machines
70-D3B-2
- IDEAL FOR DRY MATERIALS
- Most Durable Machine in the Industry
- THIN to MEDIUM WEIGHT FABRICS
72-D3B-2
- IDEAL FOR TUBULAR KNITS
- 3 Sets of Feed Dogs
- Extended Cutter Mechanism
- Longer Presser Foot!
70-Y3B-2
- Stitch Multiplying Butt Seamer
- For Strength at the selvages
- Lever Activated Stitch Multiplier
- Doubles the Stitch Count on Demand
72-D3B-R
- SEWS A ROLLED SEAM
- Ideal for loose knits
- Easy to Feed
70-D3B-2_LS
- NEW! TWO THREAD BUTT SEAMER
- Locking 5/8" Stitch
- Ideal for a TOUGH seam
70-D3B-2_HP
- For HIGH PILE fabrics
- Sews up to 2" thick material
- Used often for paint roller material, bed liners
70-D3B-2_RAIL
- the 70-D3B-2 for RAIL SETUPS
- Designed specifically for European and American Rail Systems
70-D3B-2_G
- A 5/8" stitch with a 1/4" GAP between fabric butts
- Ideal for SEAM DETECTION
- Allows for more flexibility with hard to sew goods
70-D3B-2_CNP
- the NICKEL PLATED MERROW 70-D3B-2
- Designed and Tested in WET environments
- Holds up to mercerizing, dyeing and bleaching
- Warrantied for 10 YEARS!!!
