70-D3B-2_LS | BUTT SEAM SEWING MACHINE
Article 4 Article 4 Article 4

MERROW 72-D3B-2_LS SPECIFICATIONS

OPERATING SPEED 2250 RPM
STITCH WIDTH 16MM (5/8")
STITCH RANGE 152.4 SPMM (6 SPI)
STANDARD NEEDLE MERROW 8SDT
MERROW NEEDLE RANGE MERROW 3SDT-8SDT
FEDERAL STITCH TYPE 503
STITCHES PER MM 101MM - 305MM (4-12 SPI)
NUMBER OF THREADS TWO THREAD
"
Recommended Accessories
Details

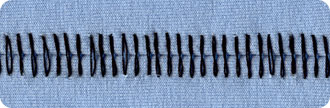

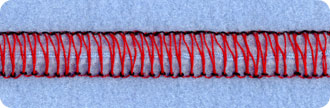

The Merrow 70-D3B-2_LS industrial sewing machine creates a two-thread butted seam on woven and non-woven goods. The second thread acts as a “lock-stitch” and is designed to lock the joining stitches in place.

The 70-D3B-2_LS creates an effective end-end seam for operations that require added security or for fabrics that will undergo a napping process.

The 70-D3B-2_LS can be configured to produce a butted, gap, or overlap seam to achieve optimum results, according to the fabrics and manufacturing processes used.

Merrow offers service and support in 65 countries around the world and a reliable supply of spare parts to keep your machine running 365 days a year.

Manufactured to withstand the toughest factory environments the 70-D3B-2_LS is warrantied for 10 years.

Other Butt Seaming Machines

70-D3B-2

  • IDEAL FOR DRY MATERIALS
  • Most Durable Machine in the Industry
  • THIN to MEDIUM WEIGHT FABRICS

72-D3B-2

  • IDEAL FOR TUBULAR KNITS
  • 3 Sets of Feed Dogs
  • Extended Cutter Mechanism
  • Longer Presser Foot!

70-Y3B-2

  • Stitch Multiplying Butt Seamer
  • For Strength at the selvages
  • Lever Activated Stitch Multiplier
  • Doubles the Stitch Count on Demand

72-D3B-R

  • SEWS A ROLLED SEAM
  • Ideal for loose knits
  • Easy to Feed

70-D3B-2_LS

  • NEW! TWO THREAD BUTT SEAMER
  • Locking 5/8" Stitch
  • Ideal for a TOUGH seam

70-D3B-2_HP

  • For HIGH PILE fabrics
  • Sews up to 2" thick material
  • Used often for paint roller material, bed liners

70-D3B-2_RAIL

  • the 70-D3B-2 for RAIL SETUPS
  • Designed specifically for European and American Rail Systems

70-D3B-2_G

  • A 5/8" stitch with a 1/4" GAP between fabric butts
  • Ideal for SEAM DETECTION
  • Allows for more flexibility with hard to sew goods

70-D3B-2_CNP

  • the NICKEL PLATED MERROW 70-D3B-2
  • Designed and Tested in WET environments
  • Holds up to mercerizing, dyeing and bleaching
  • Warrantied for 10 YEARS!!!
